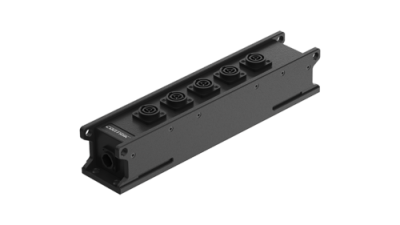

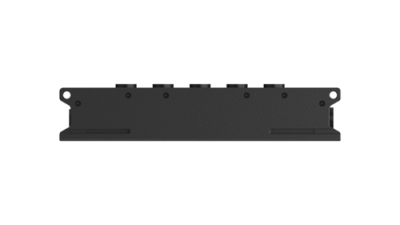

Power Strip X CPSSX-T1-T6 (U.S.)
1x powerCON TRUE1 IN – 6x powerCON® TRUE1® TOP OUT - Indoor (NEMA1)
EU version: Power Strip X CPSX-T1-T6
Power Strip Xtreme (X) is a compact distribution solution for mobile applications. Rugged EASYLEN® housing is ideally suited for demanding applications and harsh conditions. 1x powerCON® TRUE1® TOP In and up to 6x powerCON® TRUE1® TOP Out.
Features & Benefits
- Extreme robust and safe EASYLEN® housing with leather grain texture
- Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
- Flame retardant (UL94-V0) and non-conductive housing material
- High mechanical protection (high IK)
- Light weight, compact
- Versatile mounting options
Downloads
Technical Information
| Product | |
|---|---|
| Input device | 1x powerCON® TRUE1® TOP |
| Output device | 6x powerCON® TRUE1® TOP |
| Daisy chaining | 1x powerCON® TRUE1® TOP |
| Electrical | |
|---|---|
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0.5 kV / mm |
| Rated voltage | 120V AC |
| Rated Current | 20A |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
|---|---|
| Lifetime | > 5000 Mating cycles per connector |
| Dimensions | 380 x 91.2 x 76.7 mm |
| Conductor cross section | AWG12 |
| Weight | 1.0 kg |
| Mounting options | Truss clip, mounting wholes for pegging or suspension |
| Type of construction | Stackable |
| Material | |
|---|---|
| Housing | Easylen |
| Color | black |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V0 |
| Protection class | NEMA1 listed. IP20. |
| Temperature range | -25 °C bis +70°C |
| Compliance | |
|---|---|
| Standard Compliance | ETL Listed. Compliant to UL STD 1640 |
Accessories
Market & Application
- Markets: Professional video wall / lighting / audio
- Mobile application: Festivals, live events
- Semi-permanent applications: Theaters, studios
Ordering information
| Article name | Details | Order code |
| CPSSX-T1-T6 | IN: 1 x powerCON® TRUE1® TOP Indoor (NEMA1) | 1035612 |
